# ElementPlus的进度条使用
我们在使用ElementPlus的进度条组件的时候，通常需要让进度条实时显示上传或下载文件的进度。
下面就是我自己写的几个成功的例子。
主要是vue3 + axios + elementplus的搭配
# 上传文件进度条

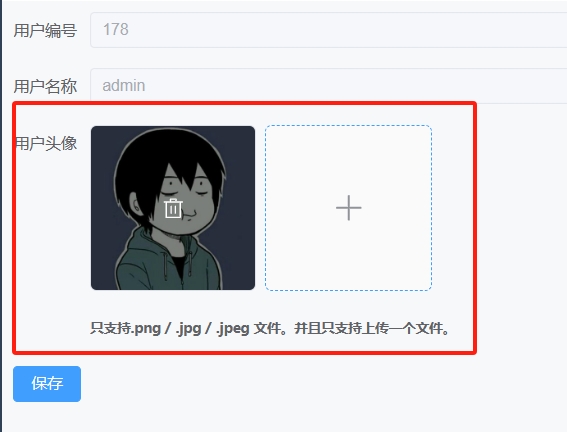

大概效果图
<template>
<el-upload
element-loading-text="获取图片文件中..."
v-model:file-list="fileList"
action="#"
:limit="1"
list-type="picture-card"
:auto-upload="false"
>
<el-icon><Plus /></el-icon>
<template #file="{ file }">
<div>
<img class="el-upload-list__item-thumbnail" :src="file.url" alt="" />
<span class="el-upload-list__item-actions">
<span
v-if="!disabled"
class="el-upload-list__item-delete"
@click="handleRemove(file)"
>
<el-icon><Delete /></el-icon>
</span>
</span>
</div>
</template>
<template #tip>
<div class="el-upload__tip" style="font-weight:bold">只支持.png / .jpg / .jpeg 文件。并且只支持上传一个文件。</div>
<!--进度条-->
<div v-if="isShowProgress">
<span>文件进度条</span>
<el-progress :text-inside="true" :stroke-width="20" :percentage="progressPercent" />
</div>
</template>
</el-upload>
<template #footer>
<span>
<el-button type="primary" @click="submit">保存</el-button>
<el-button @click="cancel">取消</el-button>
</span>
</template>
</template>
<script setup>
import { ref, inject, onMounted } from 'vue'
//此处需要提前引入axios依赖
let axiosService = axios.create({})
//文件图相关=====================
let disabled = ref(false)
let isShowProgress = ref(false)
let progressPercent = ref(0)
let fileList = ref([])
//移除文件
let handleRemove = () => {
fileList.value = []
}
//点击确定操作
function submit() {
//判断文件列表是否有文件
if (fileList.value.length === 0) {
return ElMessage.error('请选择要上传的文件')
} else if (fileList.value.length > 1) {
return ElMessage.warning('默认上传第一个文件，其余文件会被舍弃')
} else {
console.log('fileList.value[0]', fileList.value[0].name)
//开始更新文件
//显示进度条
isShowProgress.value = true
let param = new FormData()
param.append('file', fileList.value[0].raw)
param.append('bucketName', 'media-cover-bucket')
param.append('oldFileName', 'oldFileName')
//调上传文件接口
axiosService.request({
url: '/shuyx-minio/oss/updateFile',
method: 'POST',
data: param,
headers: { 'Content-Type': 'multipart/form-data' },
//上传进度函数，用于监听文件上传进度
onUploadProgress:(e) => {
//函数返回值赋值给进度条
progressPercent.value = Number(((e.loaded / e.total) * 100).toFixed(0))
}
}).finally(() => {
//进度条隐藏，进度条进度清空
isShowProgress.value = false
progressPercent.value = 0
})
}
}
</script>
<style scoped></style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
实现监听上传文件进度的核心是axios的onUploadProgress函数
axiosService.request({
//.....
//上传进度函数，用于监听文件上传进度
onUploadProgress:(e) => {
//函数返回值赋值给进度条
progressPercent.value = Number(((e.loaded / e.total) * 100).toFixed(0))
}
})
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
java后端代码,这里是java + minio 来实现文件存储
@PostMapping("/updateFile")
public Object updateFile(@RequestParam("file") MultipartFile file, String bucketName, String oldFileName) {
log.info("/shuyx-minio/oss/updateFile, file {} ,bucketName {},oldFileName {}", file, bucketName, oldFileName);
try{
//先删除旧文件
myMinioClient.removeObject(
RemoveObjectArgs.builder()
.bucket(bucketName)
.object(oldFileName)
.build());
//再上传新文件
//新文件名
String newFileName = System.currentTimeMillis() + "." + file.getOriginalFilename();
//文件类型
String contentType = file.getContentType();
//上传文件
minioUtils.uploadFile(bucketName, file, newFileName, contentType);
JSONObject jsonObject = new JSONObject();
//新文件名就是文件链接
jsonObject.put("fileUrl",newFileName);
return ReturnUtil.success(jsonObject);
}catch(Exception e){
log.error("文件更新异常，请查询日志");
e.printStackTrace();
return ReturnUtil.fail(ResultCodeEnum.BUSINESS_UPDATE_FAILED);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

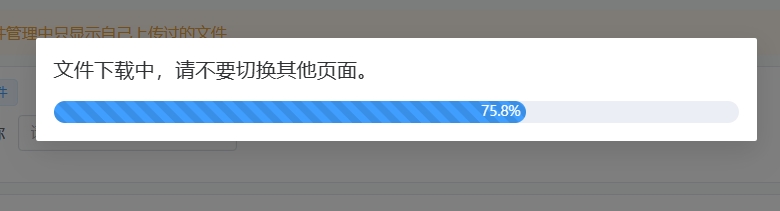

# 下载文件进度条
<template>
<!--文件下载进度条-->
<el-card
v-if="isShowProgress"
shadow="never"
:body-style="{ padding: '10px' }"
style="margin-top: 10px"
>
<el-dialog
v-model="isShowProgress"
title="文件下载中，请不要切换其他页面。"
:show-close="false"
:close-on-click-modal="false"
:close-on-press-escape="false"
destroy-on-close
>
<el-progress
:text-inside="true"
:stroke-width="20"
:percentage="progressPercent"
striped
striped-flow
/>
</el-dialog>
</el-card>
</template>
<script setup>
import { ref, onMounted, provide } from 'vue'
//此处需要提前引入axios依赖
let axiosService = axios.create({})
//下载相关==
let isShowProgress = ref(false)
let progressPercent = ref(0)
function toDownload(obj) {
//显示进度条
isShowProgress.value = true
//调用下载接口
let a = {
fileName: obj.fileAddress,
bucketName: 'file-service-bucket'
}
axiosService.request({
url: '/shuyx-minio/oss/download',
method: 'GET',
params: queryData,
responseType: 'blob',
headers:{ 'Content-Type': 'application/octet-stream'},
onDownloadProgress:(e) => {
//下载函数，把下载进度数值赋值给进度条组件
progressPercent.value = Number(((e.loaded / e.total) * 100).toFixed(1))
}
}).then((res) => {
//通过blob来接收下载文件的二进制流。
let blob = new Blob([res])
// 然后通过模拟a标签，点击a标签来下载文件
let elink = document.createElement('a')
elink.download = a.fileName
elink.style.display = 'none'
elink.href = URL.createObjectURL(blob)
document.body.appendChild(elink)
elink.click()
URL.revokeObjectURL(elink.href)
document.body.removeChild(elink)
}).finally(() => {
//隐藏进度条
progressPercent.value = 0
isShowProgress.value = false
})
}
</script>
<style scoped></style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
实现监听下载文件进度的核心是axios的onDownloadProgress函数。
axiosService.request({
//.....
//下载进度函数，用于监听文件下载进度
onDownloadProgress:(e) => {
//函数返回值赋值给进度条
progressPercent.value = Number(((e.loaded / e.total) * 100).toFixed(1))
}
})
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
后端java代码:
这里是java + minio 来实现文件存储
@GetMapping("/download")
public void download(@RequestParam("fileName") String fileName, @RequestParam("bucketName") String bucketName, HttpServletResponse response) throws IOException {
log.info("/shuyx-minio/oss/download, fileName,{},bucketName,{}", fileName, bucketName);
InputStream inputStream = null;
OutputStream outputStream = null;
try {
//先查询文件信息
StatObjectResponse fileInfo = minioUtils.getFileInfo(bucketName, fileName);
//设置响应请求
response.setContentType("application/octet-stream");

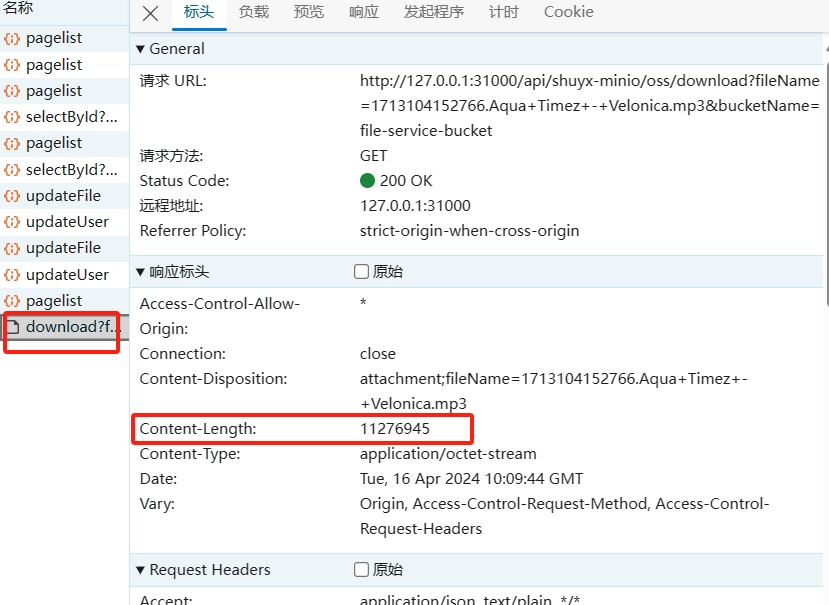

//设置content-length响应头参数
response.setContentLengthLong(fileInfo.size());
response.setHeader("Content-Disposition", "attachment;fileName=" + URLEncoder.encode(fileName, "utf8"));
//获取文件的二进制流
inputStream = minioUtils.getObject(bucketName, fileName);
outputStream = response.getOutputStream();
byte[] buffer = new byte[2048];
int len = 0;
while ((len = inputStream.read(buffer)) > 0) {
outputStream.write(buffer, 0, len);
}
} catch (Exception e) {
e.printStackTrace();
log.error("文件下载失败,请查询日志");
} finally {
inputStream.close();
outputStream.close();
}
}
